Prefabricated Livestock Shed Design Steel Structure Poultry House for Cow Pig Cattle Barn

Ask Lasest Price
Brand Name :	Juhe
Model Number :	q235
Delivery Time :	15-21 days
Price :	$25.00/square meters 100-1999 square meters

Add to Cart

Product Details
Company Profile

Prefabricated Livestock Shed Design Steel Structure Poultry House for Cow Pig Cattle Barn

Team Design

Chicken farm construction

JUHE offers a global "turnkey" solution, where designing, building and installing undergoes precise operation. Where all the parties involved work in constant collaboration the livestock farm can exceed expectations. We are always available to adapt to the particular conditions each project, animal and farmer requires.

The specifications of layer cage ("HT”-Hightop®brand; "A”- A shape; ""34”- 3 tiers 4 nests/doors/cell; "(L)" -Large size)
Model	Installation size	Nest/strip	Total nests	size of the nest	chicken /nest	Capacity /set
HT-L-A34	1.88m L2.3m W1.5m H	4	24	0.470.340.38*0.33 m	4	96
HalfHT-L-A34(L)	1.88m L1.2m W1.5m H	4	12			4	48
HT-L-A44	1.88m L2.4m W1.95m H	4	32			4	128
HT-L-A34(L)	1.95m L2.3m W1.95m H	4	24	0.490.380.38*0.33 m	4	96
HT-L-A44(L)	1.95m L2.4m W1.95m H	4	32	0.490.380.38*0.33 m		4	128
HT-L-A35(L)	2.15m L2.3m W1.95m H	5	30	0.490.380.38*0.33 m	3-4	90-120
HT-L-A45(L)	2.15m L2.4m W1.95m H	5	40	0.490.380.38*0.33 m		3-4	120-160
Note:If above size doesn't have the one you want,we can customize the cage size, if your order quantity is 20GP or 40 HC container
Materials	Q235 Low carbon steel wire
Surface Treatment	Cold galvanized(7-10 years)
		Hot dip galvanized(15-20 years)
		Marine grade(15-20 years)
Package	Full container loading: cage and cage stand have no package, some fittings are in plastic bags and carton box
Package		Less container loading: packed in wooden box or pallet

Manufacturing Construction

1.The triangular roof truss structure:The truss structure is welded with steel pipes, angle irons, square pipes, C-section steel, etc. 2. Primary Framing:Steel columns, roof beams, wind-resistant columns. (1) Steel columns are steel structures’ prominent load-bearing structural members. (2) Roof beams and steel columns form a load-bearing system. (3) Wind-resistant columns transfer the loads on the gable roof on both sides to the entire system. 3. Secondary steel structure Secondary steel mainly includes tie rods, horizontal roof bracing, wall bracing, roof purlin, and wall girt. 4. Roof and wall panels Corrugated single color sheet, sandwich panel, color steel sheet with insulation cotton. The thickness of the corrugated color sheet is 0.4mm, 0.5mm, 0.6mm. The sandwich panel uses rock wool or polyurethane sandwich panel, and insulation cotton uses glass wool.

Installation and Debugging

A feed tower is a storage device suitable for large and medium farms. The feeding equipment is provided at its outlet and has the function of regularly transporting feed to the piggery. Our common tower is composed of silo body, silo clamshell, ladder and column. The feed tower is not actually a cylinder, because the lower cone has a perspective hole, so you can observe the height of the feed in the bin.

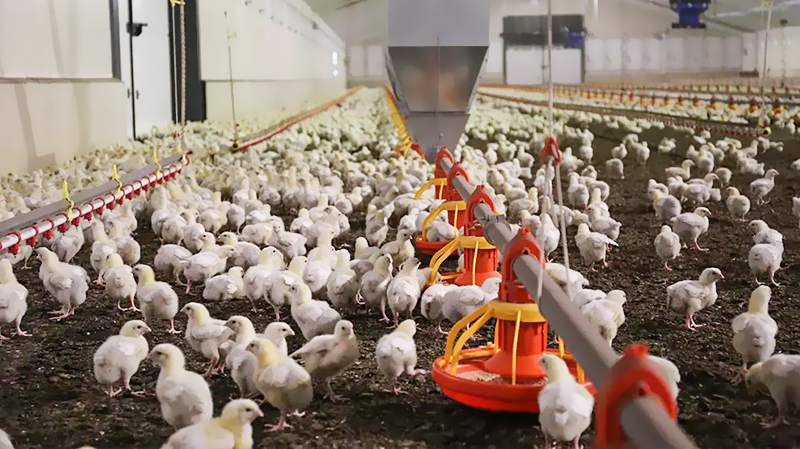

Pan feeding system

Feed pan is ideal for whole raising period from brooding to slaughter.The suitable pan height is easy to get feed.360° feed distribution improve uniformity.Special designed feed cone with wings prevents feed waste.Adjustable feeding line of optional position for different period birds When cleaning,easy to lift.

Nipple drinker

Patent design double-sealed nipple drinkers with drip cups can prevent water leakage, then keep the padding feed dry and ensure the chicks’ health. Precision-machined Stainless steel stem and high quality PP shell , anti-corrosion.Two different specification can satisfy broiler and breeder’s normal water drinking.

Ventilation fan

The butterfly shutters make less air resistance,better sealing,easy to clean.The air leakage rate is about 75% less than ordinary shutter.Air volume is 15% higher than normal fan,thus less fans are requested.The frame dimension is the same as box fan.No additional work should be done for replacing old fans.

Poultry cages

Zinc-aluminium coating of all wire parts (cage fronts, bottom wires and lateral partitions) → 3 to 4 times better protection against corrosion compared to galvanized wire.Air duct for fresh air supply to the birds and for the production of dry manure (optional) → significantly reduced ammonia emissions.

Plastic slat

Special designed holes, keep slat clean and no-touch with birds.There is no blind angle, easy for cleaning,avoid insert problem. Comfortable and anti-skid slat,to increase fertilization rate.Smooth surface avoid damage to bird’s breast and feet.All parts made of high-strength engineering plastics,with reinforced treatment to get better wear-resistant.

Cooling system

Cooling system is designed with water reusing and automatic water replenishing device, Saving cost from investing in water reuse system for customer.Trough with flow leading plate,ensure a uniform soaking of pad,and get the best cooling effect.Easy replacement of cooling pad paper dismantable structure is convenience for cleaning water pipe.

Technical Training

Equipment management application training

Ensure that employees master the knowledge of equipment management, ensure that equipment operates with high efficiency, long cycle, safety and economy.

Breeding management process training

Let employees master pig feeding, management, disease prevention and safety knowledge, etc., so that staff can lay the foundation for future work.

Equipment operation application training

Enable equipment operators to have a comprehensive understanding of the equipment, enhance their skills in maintaining and using the equipment, be fully competent in the work they undertake.

Delivery at Production Capacity

1.Chicken cage:Chick cages; Breeding chicken cages; Layer cages. 2. Feeding equipment includes feeding machinery and food troughs: Chain feeder system; Pan feeding system; Food troughs. 3.Drinking water equipment:Long sink;Vacuum drinking fountain; Nipple drinking fountain;Cup-type drinking fountain;Suspended plate drinking fountain. 4.Ventilation and cooling equipment for Steel Structure Poultry Building. 5.Chicken house fan. 6.Wet curtain-fan cooling equipment. 7.Automatic spray cooling equipment.

Company Profile

Shandong Juhe Steel Co., Ltd. as one of the animal husbandry equipment company, which is concentrated on R&D, production, sales, installation, maintenance and other services. Its main products include pig stall system, feeding system, environmental control system, poultry equipment and other animal husbandry tools. The leader of our company has more than 10 years of rich experience in the breeding equipment industry, and established our own brand "BaiShengJuHe", aiming to provide professional and cost-effective one-stop service for modern farming.

Partner

Packing and shipping

FAQ

Q1: Are you a factory? A: Yes,we are professional livestock equiptment manufacture in China, since 2006. Q2.Can you print our logo or brand? A: Yes, We are welcome to cooperate with customized service Q3.What is your delivery time? A: It denpend. Usually 100-500pcs in stock; If over 1000pcs, the delivery could be 15 days; Q4: After set order, what service could you have? A: 1. One-stop visual production. The photos and videos will be provided to you on a regular basis; 2. Inspection report for each batch of order; 3. After-sales installation guide; 4. Long After-sale service, 5 years. 5. Promplty reply. Q5: How do you control the quality? A: Our factory has get the ISO9001 quality certification. Our quality control department will do the inspect for each bath of order. All process strictly produce according to the quality control system. Q6: Why choose us? A: 1. More than 15 years experience in doing chicken farm equipment; 2. Factory direct sale, Strict quality control and competitive price; 3. Strong after sell serivce, Video, photo and online live show the produce steps. Installation technical guidance.
